Features

The SG15Colour is an entry level, small and attractive price checker, its features the latest technology. Interfacing is either through Wireless RF or hard wired Ethernet. The bright display has, depending on the font set, 3 or 5 lines and can display up to 20 characters per line , and there is a choice of bar code scanners between the entry level single scan line CCD scanner and the high performance 20 scan lines omni–directional laser scanner. With its auto-shuttle-emulation-like smart detection that offers superior decoding on a reading speed up to 500 scans per second and up to 250mm reading depth for the majority of 1D barcodes, the scanner delivers excellent decoding performance and more option with data input in 2D and Laser scanner engine. This flexibility of installation is enhanced by the optional Power–over–Ethernet, three available standard colours also greatly help to fit most interiors.

  • Driven by Linux OS
  • 3.5" colour display
  • Self detection and configuration of scan-engine at start-up

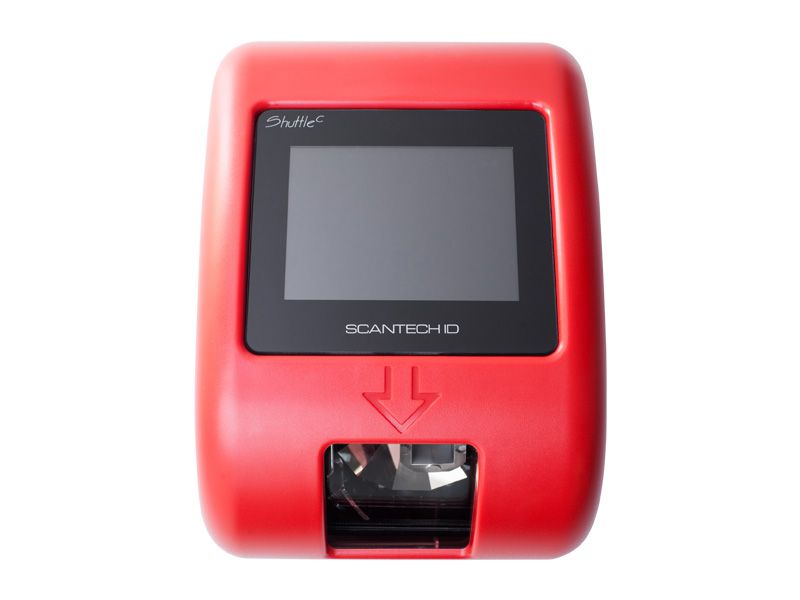

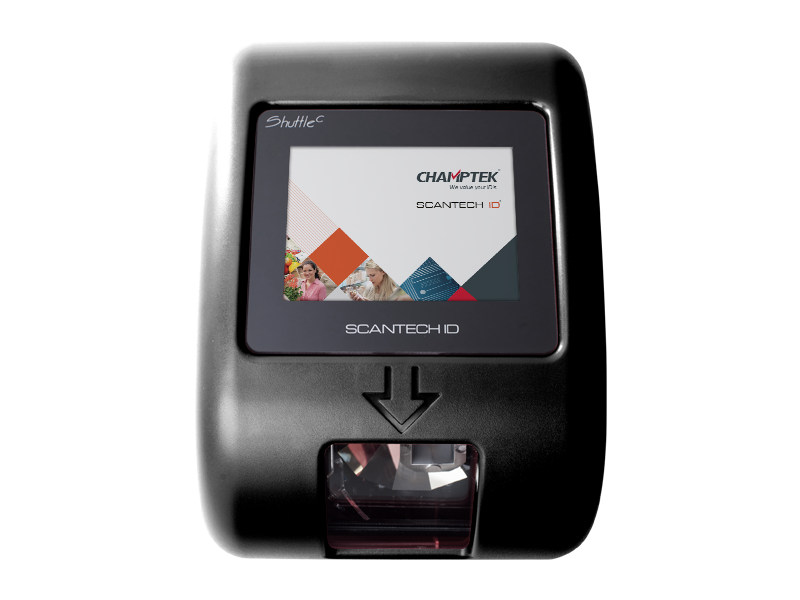

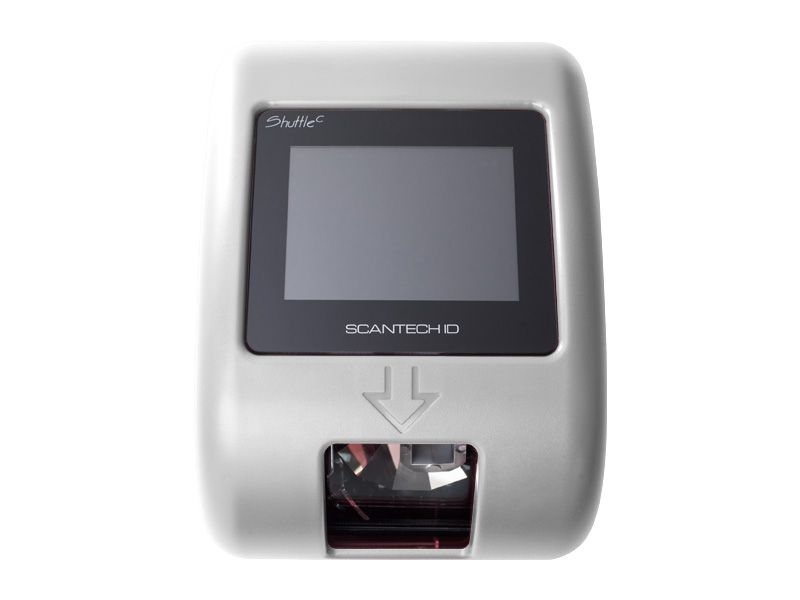

  • Choice of colour:Red,Black and Silver
  • Choice of scanner:Laser Omni/CCD single Line/2D imager
  • Secured access to web interface by password.
  • User friendly Software tools for easy integration.
  • Choice of Interface:Ethernet/WiFi/Power over Ethernet
  • Others: Exit-Gate control function support

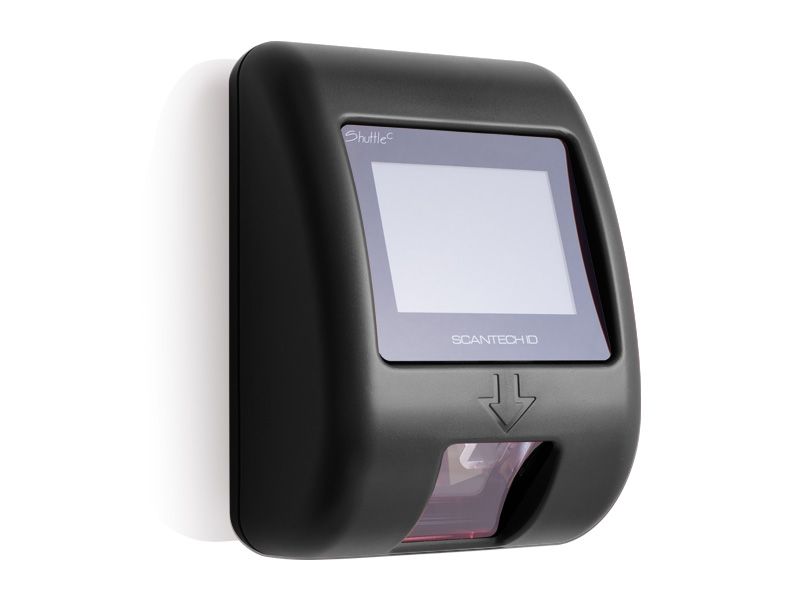

  • SG-15 Colour

    SG-15 Colour
  • Compare to

Tech Specs

System Architecture

Operating Platform Storage Power Supply Dimensions (WxHxL) Memory RAM
Linux 3.0 or Android 4.4 Internal: 4GB ; External: USB flash disk (not included) DC 5V/2.0A power adapter or PoE 182x131x95mm 512MB
- Linux 2.6 or WinCE 6.0 Linux 2.6 or WinCE 6.0 - - - - - - - - - - - - - - - - Linux 3.0 or Android 4.4 - - - - - - - - - Internal: 256MB; expandable by SD card (in factory) ; External: USB flash disk (not included) Internal: 256MB; expandable by SD card (in factory) ; External: USB flash disk (not included) - - 8MB (over 100,000 scans of 50 bytes barcode) 8MB (over 100,000 scans of 50 bytes barcode) - - - - - - - - - - - - Internal: 4GB/8GB External: USB flash disk (not included) - - - - - - - - - DC 12V/1.5A power adapter or PoE DC 12V/1.5A power adapter or PoE (optional) - - - - - - - - - - - - - - - - DC 12V/1.5A power adapter or PoE (optional) - - - - - - - - - 193 x 176 x 85mm 193 x 176 x 85mm - - 90x41x23.4mm 90x41x23.4mm - - - - - - - - - - - - 278x240x86mm - - - - - 81 x 61 x 192mm 81 x 61 x 192mm 78 x 60 x 178mm - 128MB 128MB - - - - - - - - - - - - - - - - 1GB/2GB - - - - - - - -

Output Media

Image Format Audio Format Video Format Display Size Brightness Resolution Speakers Touch Screen Bluetooth Audio Headphone
PNG, JPEG, GIF, BMP WAV N/A 3.5" (diagonal) 450 nits 320 x 240 pixels (16M colors) Loudspeaker x 1 N/A N/A N/A
- PNG, JPEG, GIF, BMP PNG, JPEG, GIF, BMP - - - - - - - - - - - - - - - - PNG, JPEG, GIF, BMP - - - - - - - - - WAV, WMA, MP3 WAV, WMA, MP3 - - - - - - - - - - - - - - - - WAV, WMA, MP3 - - - - - - - - - MPEG-4, H.264 MPEG-4, H.264 - - - - - - - - - - - - - - - - MPEG-4, H.264 - - - - - - - - - 4.3” diagonal 5.7” diagonal - - - - - - - - - - - - - - - - 10.1" (diagonal) - - - - - 2.4-inch LCD color screen with 240*320 resolution 2.4-inch LCD color screen with 240*320 resolution 2.4-inch color screen - 350 nits 400 nits - - - - - - - - - - - - - - - - 500 nits - - - - - - - - - 480 x 272 pixels (65,535 colours) 640 x 480 pixels (65K colors) - - - - - - - - - - - - - - - - 1280 × 800 pixels (16M colors) - - - - - - - - - Loudspeaker (2Watt) x 2 Loudspeaker (2Watt) x 2 - - - - - - - - - - - - - - - - Loudspeaker (2Watt) x 2 - - - - - - - - - N/A Resistive type - - - - - - - - - - - - - - - - Capacitive type - - - - - - - - - N/A N/A - - - - - - - - - - - - - - - - Optional - - - - - - - - - 3.5 mm jack 3.5 mm jack - - - - - - - - - - - - - - - - N/A - - - - - - - -

Data Ports

USB 2.0 LAN port 10/100 Mb RS232
1 1 (for Ethernet or PoE) 1
- 2 2 - - - - - - - - - - - - - - - - 3 - - - - - - - - - 1 (for Ethernet or PoE) 1 (for Ethernet or PoE), - - - - - - - - - - - - - - - - LAN x 1 (for Ethernet or PoE) - - - - - - - - - 1 1 - - - - - - - - - - - - - - - - 1 - - - - - - - -

Network Interface

Wired LAN Wireless LAN Encryption protocols
10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) 802.11a/b/g/n/ac, 2.4GHzand 5GHz dual-band WPA, WPA-1/2 Personal & Enterprise
- 10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) 10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) - - - - - - - - - - - - - - - - 10/100Mb Ethernet (802.3); Power over Ethernet 802.3af(optional) - - - - - - - - - 802.11b/g/n 2.4 GHz(optional) 802.11b/g/n 2.4 GHz(Optional) - - - - - - - - - - - - - - - - 802.11a/b/g/n/ac, 2.4GHz and 5GHz dual-band(optional) - - - - - - - - - WPA, PSK and WPA Enterprise security WPA, PSK and WPA Enterprise security - - - - - - - - - - - - - - - - WPA, PSK and WPA Enterprise security - - - - - - - -

Data Inputs

Scanner adjustable Scanner Type Optional
N/A 1D omni-directional laser, 1D Linear imager, 2D area imager (selectable) N/A
- Adjustable from 10° to 45° vertical in 5° step lock Adjustable from 10° to 45° vertical in 5° step lock - - - - - - - - - - - - - - - - N/A - - - - - - - - - 1D omni-directional laser or 2D area imager (selectable) 1D omni-directional laser or 2D area imager (selectable) - - - - - - - - - - - - - - - - 2D area imager - - - - - - - - - NFC Reader (ISO 1443A / ISO 1443B / ISO 15693 MIFARE Classic / MIFARE UL), Camera & Microphone NFC Reader (ISO 1443A / ISO 1443B / ISO 15693 MIFARE Classic / MIFARE UL), Camera & Microphone - - - - - - - - - - - - - - - - NFC Reader (ISO 1443A / ISO 1443B / ISO 15693 MIFARE Classic / MIFARE UL), Camera & Microphone - - - - - - - -

Software and Applications

--
Price check application, web management, remote package upgrade
- Price checker, web management tool, remote package upgrade (Linux version only) Price checker, web management tool, remote package upgrade (Linux version only) - - - - - - - - - - - - - - - - Price checker (Linux version only), remote package upgrade , web management tool - - - - - - - -

Downloads

Specification Datasheet E-Catalogue
Download Download Download

Accessories

  1. Adaptor-5V(Small, Length=2.5m)

    • Adaptor-5V(Small, Length=2.5m)
    • Champtek p/n0104-SP00091
    • RemarkSwitch Power Adaptor 90-264V 5V/2A 90 degree 2.5m
    • Color-

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
