Features

NOVA N-4060 has excellent design with a new back-end which can create an outstanding product performance and reliability. This scanner features are high inerrability, flexibility, scanning, and decoding capability. It is ideally suited for supermarkets, pharmacies, petrolstations, and other similar retail stores. Based on the standard product reliability, the product design concept is fully focused on user's mode. It also reduces time and cost. Our solutions provide instant and accurate scanning, making the checkout process more efficient for you and more convenient for your customers. True presentation scanning, with Omni-directional and pass-by scan capabilities offer a faster and more natural way of working.

  • Scan pattern of Omni-directional scanning by maximizing productivity.
  • Read all 1D standard bar codes include GS1 Databar family symbols to future proof your investment.
  • Automatic sleep and wake-up mode which saves power and improves life time.
  • Support multiple interfaces to allow with only a cable change.
  • STAR code reconstruction technique allows easy reading of truncated, damaged and substandard bar codes.
  • Scanner Tuner software allows for easy programming and set up of scanners.
  • Support wall-mount hanging for easy installation.
  • Anti-scraping protection glass window
  • Touchscreen button for Sleep/Wake & Volume
  • 1D Codes
  • GS1
  • NOVA N-4060

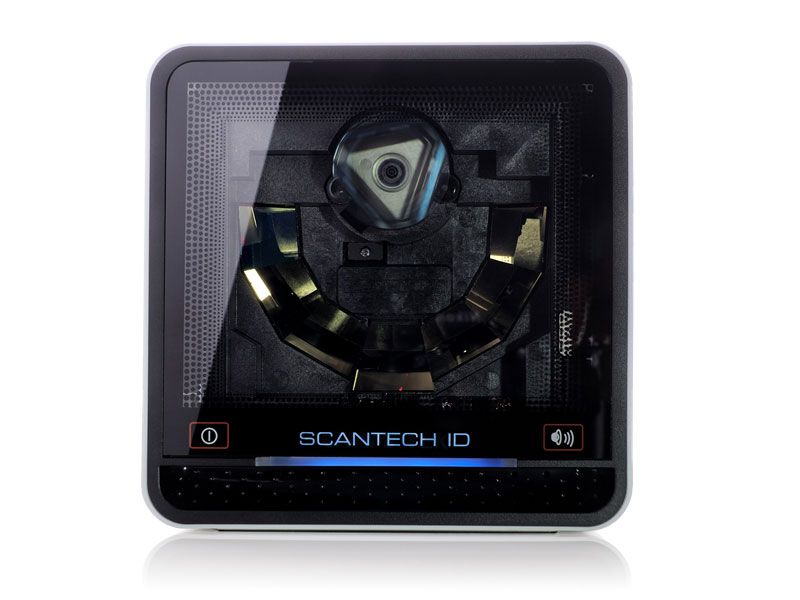

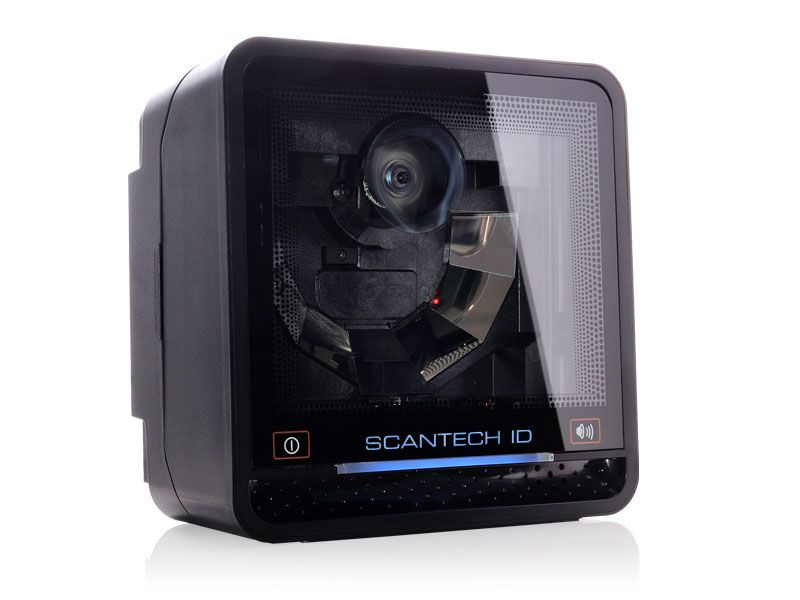

    NOVA N-4060
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 6,400 Lux
- Up to 7,000 Lux

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Indicators Print Contrast Ratio Scan Pattern EAS
152x152x90mm 650±10nm VLD Up to 250mm@13mil/0.33mm, PCS90%, Code 39 5mil/0.127mm Beeper and LED 30% 7 directions scan field, 24 lines YES
- 152x152x90mm - 650±10nm VLD - Up to 250mm@13mil/0.33mm, PCS90%, Code 39 - 5mil/0.127mm - Beeper and LED - 30% - 7 directions scan field, 24 lines - YES

Electrical Characteristics

Interface Power
RS232, USB(HID, Virtual COM), KBW, Power USB DC 5V@2A
- RS232, USB(HID, Virtual COM), KBW, Power USB - DC 12V @1.5A

Downloads

Datasheet E-Catalogue Configuration Guide User's Manual
Download Download Download Download

Accessories

  1. Adaptor-5V(Small, Length=2.5m)

    • Adaptor-5V(Small, Length=2.5m)
    • Champtek p/n0104-SP00091
    • RemarkSwitch Power Adaptor 90-264V 5V/2A 90 degree 2.5m
    • Color-
  2. Cable-SID-Power USB(Length=3m)

    • Cable-SID-Power USB(Length=3m)
    • Champtek p/n0114-S801121
    • RemarkScantech ID RJ48+Power USB Straight black color 3m length
    • Color-
  3. Cable-SID-PS/2(Length=2m)

    • Cable-SID-PS/2(Length=2m)
    • Champtek p/n0114-SM02121
    • RemarkScantech ID PS2 MD6M + MD6F + RJ48 Straight Cable Black color 2m length
    • Color-
  4. Cable-SID-RS232(Length=2m)

    • Cable-SID-RS232(Length=2m)
    • Champtek p/n0114-SM01121
    • RemarkScantech ID RS232 DB9F + RJ48 Straight Cable Black Color 2m length
    • Color-
  5. Cable-SID-USB Dual(Length=3m, Dual USB)

    • Cable-SID-USB Dual(Length=3m, Dual USB)
    • Champtek p/n0114-S802141
    • RemarkDual USB plug Interface cable, RJ48+USB*2 A type Straight Black color length 3m
    • Color-
  6. Cable-SID-USB(Length=3m, Shielding)

    • Cable-SID-USB(Length=3m, Shielding)
    • Champtek p/n0114-S802131
    • RemarkUSB interface cable, RJ48+USB A type 3m length Straight black shielded
    • Color-
  7. Cable-SID-USB+DC Connector(Length=1.5m)

    • Cable-SID-USB+DC Connector(Length=1.5m)
    • Champtek p/n0114-SM04221
    • RemarkScantechID MICA USB + DC + RJ48 L=1500mm Straight Cable Black
    • Color-
  8. Metal Frame-NOVA

    • Metal Frame-NOVA
    • Champtek p/n7184MFB401D1000
    • RemarkIn-counter Metal Frame No Interface V00
    • Color-

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
