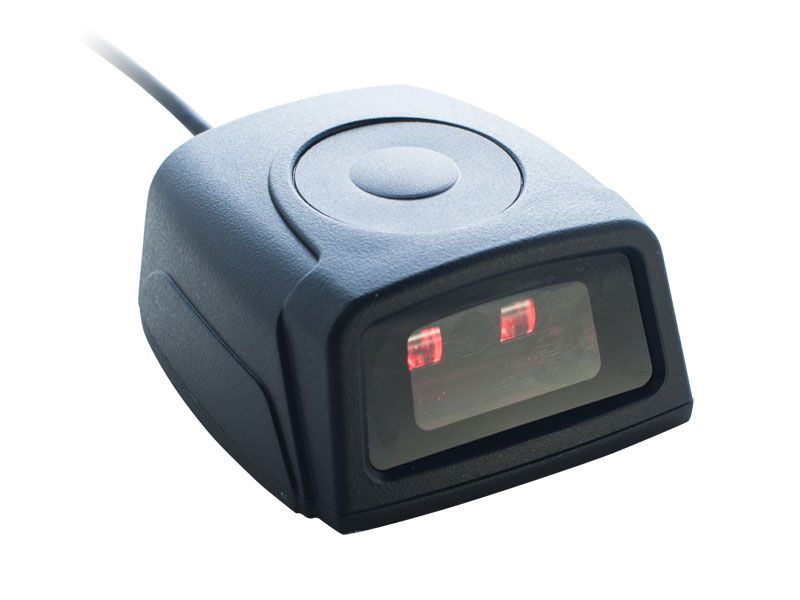

FS700

A stand option can be ordered to facilitate desktop hand-free reading options.

FS700
  • FS700

Features

The FS700 is equipped with ultra-compact high performance CCD imager bar code scanning engine, ideal for OEM applications in devices including POS, medical devices, kiosks, lottery terminals and access control devices, a stand option can be ordered to facilitate desktop hand-free reading options. Performance : Its auto-shuttle-emulation-like smart detection, offers superior decoding performance on a reading speed up to 500 scans per second and up to 500mm reading depth for the majority of 1D bar codes and GS1 DataBar™ codes. A stand option can be ordered to facilitate hand-free “ continuous mode” reading options. Everything has been done to simplify the integration of the FS700, compact size, multiple mounting possibilities and <a href="http://www.replicaukonline.com/">best replica watches</a> multiple interfaces selection, such as standard RS232 & USB-HID and USB Virtual COM port. With its built-in automatically turn off reading and switch on reading as it sense a bar code moving in front of it, can extend its lifespan. its 100,000 LUX ambient light resistance, hand-on software-programming function, this FS700 is the best choice ever for various fixed mount/build in OEM bar code scanning application.

  • Easily integrated with various OEM application.
  • Fixed mount linear imager bar code scanner which offers superior 1D scanning.
  • Compact and lightweight design is flexible for external application requirement.
  • Read major 1D bar codes, GS1 Databar linear and stacked bar codes.
  • Support automatic detection and wake up reading mode.
  • Reading depth is up to 500mm (20mil/0.5mm@code39 pcs90%).
  • Smart Detection, speed up to 500 scans per second.
  • Rugged casing that supports IP65 Dropping from 1.8m
  • 1D Codes
  • GS1

  • FS700

    FS700

  • Compare to

Tech Specs

Environmental

Ambient light
Up to 100,000 Lux
- - Up to 100,000 Lux - Works in any lighting conditions from 0 to 100,000 lux - 0 lux up to 100,000 lux. 0 lux up to 3,000 lux. - - - - - - 0 lux up to 3,000 lux. - - - Up to 100,000 Lux - - - - - - - - - 0 to 3000 lux, avoid direct sunlight - up to 100,000 Lux - - Up to 100,000 Lux - - - Up to 1,500 Lux (direct sunlight) - Up to 1,500 Lux (direct sunlight) - Up to 1,500 Lux (direct sunlight)

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Print Contrast Ratio IP Rating
64.6x59.2x30mm 632±5nm Red LED Up to 500mm@20mil/0.5mm, PCS90%, Code 39 0.1mm/4mil Smart detection, up to 500 scans Beeper and LED 30% IP65
- - 69x56x27.7mm - Optical module 22.30mm W x 12.0 mm D x 12.0mm H Decoder board 37.0 mm W x 23.4 mm D - - - - - - - 25x20x11.5mm - - - - - 69x56x27.7mm - 25x20x11.5mm - - - - - - - - - - - - 64.6x59.2x30mm - Platen Size:88.90 mm x 80.01 mm / 3.50” x 3.15” Sensing Area:81.28 mm x 76.30 mm / 3.20” x 3.00” Assembly Dimensions:114.7 mm x 131.8 mm x 82 mm / 4.52” x 5.19” x .3.23" - - - - - - - - 632±5nm Red LED - White light LED - White light LED - - - - - 632±5nm Red LED - - - - - 625±5nm Red LED RED LED/ IR 632±5nm Red LED - - - - - - - - - - - - 625±5nm Red LED - - - 660nm Red LED - 660nm Red LED - 660nm Red LED - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - 280mm@20mil/0.5mm, PCS90% - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - Up to 250mm@20mil/0.5mm, PCS90% - - - - - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - Contact Type - Contact Type - Contact Type - - 0.1mm/4mil - - - 3mil/0.076mm@PCS90% Code39,8mil/0.2mm@PCS90% QRCode - - - - - 4mil/0.1mm - - - - - 1D: 4mil/0.1mm ;2D: 8mil/0.2mm 5.9mil/0.15mm 4mil/0.1mm - - - - - - - - - 0.127mm/5mil UPC/EAN, 0.26/10mil 2D barcode - - - - 500 ppi, Image:1600 x 1500 pixels - 5mil/0.127mm - 5mil/0.127mm - - - - Smart detection, up to 500 scans 100-1000mm/sec 60 images per second - 60 fps (at full resolution) - - - - - Smart detection, up to 500 scans - - - - - 60 images 100-1000mm/sec 100 scans ±10% - - - - - - - - 100-1000mm/sec - - - 60 images 100-1000mm/sec Min frame rate > 8fps - 50-500mm/sec - 50-500mm/sec - - - - Beeper - Good read beep - Beeper - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - Beeper - - - - - - - - - - - - Beeper and LED - - - - - - - - - - 30% - - - 30%@5mil/0.127mm - - - - - 25% - - - - - 30% - 25% - - - - - - - - - - - - 30% - - - - - - - - - - N/A - - - - - - - - IP54 - - - - - IP54 N/A - - - - - - - - - - - - - - IP65 - - - - - - - -

Electrical Characteristics

Interface Power
RS-232, USB (HID, Virtual COM) DC 5V
- - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB RS232, USB (HID, Virtual COM) - - USB or RS-232 wired cable - - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - a USB or RS-232 wired cable to a host - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) - - - - - - - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 TTL/KBW/RS232/USB USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB USB 2.0 - - - - - - - - DC 5V - - - - - - - - - DC 5V - - - - - DC 5V - DC 5V - - - - - - - - - - - - DC 5V - USB Host, Voltage Level: 4.40V to 5.25V; 4.4via USB; full scanning > 300mA, typical > 250mA - - - - - -
Configuration Guide Configuration Quick Guide Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-

  2. Cable-CHK-FS/FL/FI7xx Series-RS232

    • Cable-CHK-FS/FL/FI7xx Series-RS232
    • P/N0114-FI71011
    • RemarkRS232 interface cable for Fixed mount FS/FI/FL series, A Type + Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack

  3. Cable-CHK-FS/FL/FI7xx Series-USB

    • Cable-CHK-FS/FL/FI7xx Series-USB
    • P/N0114-FI71001
    • RemarkUSB Interface cable for Fixed mount FI/FS/FL series, USB A Type +Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack
