Features

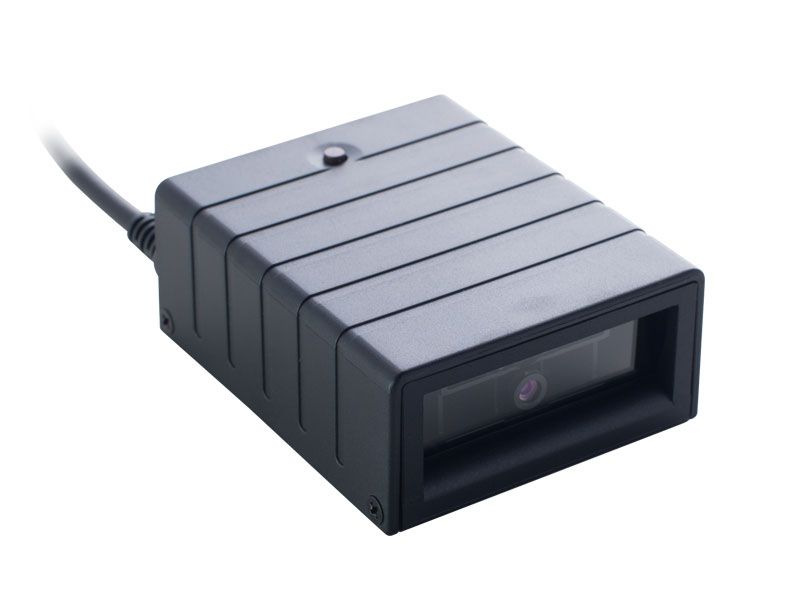

The FI310 is equipped with ultra-compact high performance 2D area imager bar code scanning engine,ideal for OEM applications in devices including POS, medical devices, kiosks, lottery terminals andaccess control devices, a stand option can be ordered to facilitate desktop hand-free reading options. The FI310 supports with up to 500mm reading depth of 1D and 2D bar codes, scan rate is up to 120 scans per second in linear emulation and 60 images per second in 2D area mode. It combines decode speed with unmatched motion tolerance to deliver an easy to use scanner with aggressive performance and offers uncompromised performance on current linear barcodes’ applications, it can emulate the operation as a linear imagers with scan rates up to 120 scans per second when decodes linear barcodes,which is more than three times faster than traditional 2-D imagers. Everything has been done to simplify the integration of the FI310, compact size, multiple mountingpossibilities and multiple interfaces selection, such as standard RS232 & USB-HID and USB Virtual COM port. The FI310 is built to match the most demanding scanning requirements, providing consistent scanning performance in total darkness to full sunshine and over a large temperature range.

  • Miniature imager provides comprehensive data captures.
  • Easily integrated with various OEM application while 1D and 2D barcode scanning.
  • Clear aiming frame that make barcode capture easily.
  • Center decoding utility to eliminate the need to position items precisely.
  • Lightweight and compact design is flexible for external application requirement.
  • 1D Codes
  • 2D Codes
  • GS1
  • FI310

    FI310
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 100,000 Lux
- - - - - - - - Up to 100,000 Lux Up to 100,000 Lux Up to 100,000 Lux - - - - - - - - - Up to 100,000 Lux Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight) - - - -

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Print Contrast Ratio IP Rating
69x56x27.7mm 625±5nm Red LED Up to 500mm@20mil/0.5mm, PCS90%, Code 39 1D: 4mil/0.1mm ;2D: 8mil/0.2mm 60 images Beeper 30% N/A
- - - - - 205 x 75 x 240mm - - 64.6x59.2x30mm 64.6x59.2x30mm 69x56x27.7mm 25x20x11.5mm - - - - - - - - 56 mm W x 69 mm D x 28 mm H - - - 25x20x11.5mm - - - - - - - - 650±10nm VLD - - 632±5nm Red LED 625±5nm Red LED 632±5nm Red LED 632±5nm Red LED 632±5nm Red LED - - RED LED/ IR - - - - 625±5nm Red LED 660nm Red LED 660nm Red LED 660nm Red LED 632±5nm Red LED - - - - - - - - 150 mm @ EAN 0.33mm/13mil PCS@90% - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 250mm@20mil/0.5mm, PCS90%, Code 39 - - - - - - - Up to 250mm@20mil/0.5mm, PCS90%, Code 39 Contact Type Contact Type Contact Type Up to 400mm@20mil/0.5mm, PCS90%, Code 39 - - - - - - - - - - - 0.1mm/4mil - 0.1mm/4mil 4mil/0.1mm 1D: 4mil/0.1mm; 2D: 10mil/0.26mm - - 5.9mil/0.15mm - - - - 1D: 4mil/0.1mm; 2D: 10mil/0.26mm 5mil/0.127mm 5mil/0.127mm - 4mil/0.1mm - - - - - - - - 1500 scans per second - - Smart detection, up to 500 scans 60 images Smart detection, up to 500 scans Smart detection, up to 500 scans 60 images 100-1000mm/sec - 100-1000mm/sec - 100-1000mm/sec 100-1000mm/sec - 60 images 50-500mm/sec 50-500mm/sec - 100 scans ±10% - - - - - - - - - LED x 1, Beeper x 1, Vibrator x1 LED x 1, Beeper x 1, Vibrator x1 Beeper and LED Beeper and LED Beeper Beeper Beeper - - - - - - - Beeper - - - Beeper - - - - - - - - - - - 30% 30% 30% 30% 45% - - - - - - - 45% - - - 45% - - - - - - - - - IP54 IP54 IP65 IP65 N/A - - - - - - - - - N/A - - - - - - -

Electrical Characteristics

Interface Power
RS-232, USB (HID, Virtual COM) DC 5V
- - - - - RS232, USB (USB HID, Virtual COM port), Keyboard Wedge, Power USB - - RS-232, USB (HID, Virtual COM) RS-232, USB (HID, Virtual COM) RS-232, USB (HID, Virtual COM) Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW RS232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - TTL/KBW/RS232/USB - TTL/KBW/RS232/USB TTL/KBW/RS232/USB - RS-232, USB (HID, Virtual COM) - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - - - - - - - - - - - DC 5V DC 5V DC 5V DC 5V DC 5V - - - - - - - DC 5V - - - DC 5V - - -

Downloads

Specification Datasheet E-Catalogue Configuration Guide
Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • Champtek p/n0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-FI310-USB

    • Cable-CHK-FI310-USB
    • Champtek p/n0114-FI50001
    • RemarkUSB Interface cable for FI310 USB A Type + Molex P1.25 11P straight cable L=1500mm black
    • ColorBlack
  3. Cable-CHK-FS/FI300-RS232

    • Cable-CHK-FS/FI300-RS232
    • Champtek p/n0116-0800031
    • RemarkRS232 interface cable for Fixed mount FS / FI 300 RS232 black DB9+DC
    • ColorBlack

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
