Features

MR300 Magnetic Stripe Reader provides you with a cost-effective magnetic stripe reader to satisfy the POS industries needs. MR300 is a well designed magnetic stripe reader with badge length 90mm and the data format complies with ISO 7810-7813, JISII standards. It reads magstripe cards with range from 300 to 4000 Oersted. MR300 is available for USB (HID), KB Wedge and RS232.

  • Reading magnetic stripe card complied with ISO 7810~3 formats.
  • Reading magnetic stripe card complied with JISII(Option).
  • Magnetic stripe reader with badge length 9cm.
  • Card Reading Speed: 10 to 100 cm per second.
  • Reading 300 to 4000 Oersted cards
  • Support beep and LED for each stripe status indicators.
  • Parameter program software for Windows series version.
  • reading card data on single, dual, or triple track in one swipe.
  • Magnetic Head Life 1,000,000 passes.

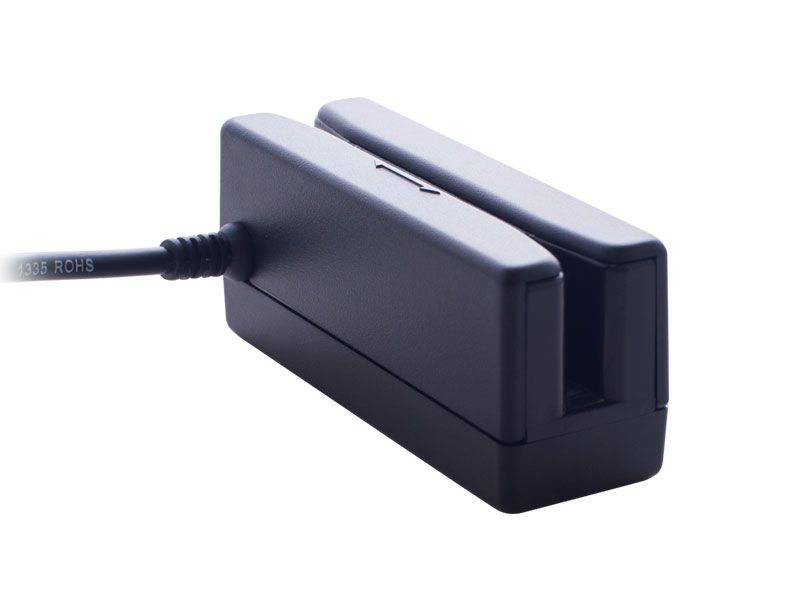

  • MR300

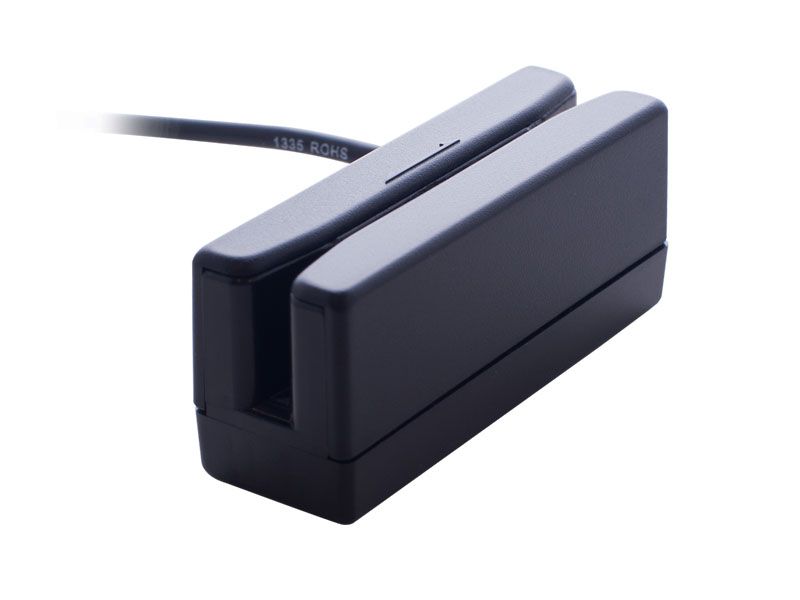

    MR300
  • Compare to

Tech Specs

Specifications

Scan Rate Magnetic Card Tracks T1&T2&T3
100-1000mm/sec IISO 7810-7813 and JISII Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters
- - - - - 1500 scans per second - - Smart detection, up to 500 scans 60 images 60 images Smart detection, up to 500 scans Smart detection, up to 500 scans 60 images 100-1000mm/sec - 100-1000mm/sec - 100-1000mm/sec - 60 images 50-500mm/sec 50-500mm/sec - 100 scans ±10% - - - - - - - - - - - - - - - - - IISO 7810-7813 and JISII - - - IISO 7810-7813 and JISII - - - - - - - - - - - - - - - - - - - - - - - Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters - - - Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters - - - - - - - - -

Life Time

Life Cycle
1,000,000 times
- - - - - - - - - - - - - - 1,000,000 times - - - 1,000,000 times - 24 cycles - - - - - - -

Electrical Characteristics

Interface
TTL/KBW/RS232/USB
- - - - - RS232, USB (USB HID, Virtual COM port), Keyboard Wedge, Power USB - - RS-232, USB (HID, Virtual COM) RS-232, USB (HID, Virtual COM) RS-232, USB (HID, Virtual COM) RS-232, USB (HID, Virtual COM) Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW RS232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - TTL/KBW/RS232/USB - TTL/KBW/RS232/USB - RS-232, USB (HID, Virtual COM) - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - - -

Downloads

Specification Datasheet E-Catalogue
Download Download Download

Accessories

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
