Features

This well-designed handheld contact type linear imager scanner has inherited the characteristic of “high performance with low price” from its previous series. Aside from the principle of excellence mechanical design, it also installs with many user-friendly operations; detachable cable, 4-in-1 interface, and 2 years product warranty; these have added-up additional values to it. As far as the performance, this scanner provides reliable scanning depth from contact to 50mm, collaborating with POS or regular cash register system, user is able to program this device to “continuous mode ” or any other scan mode if needed, Aid in various major barcodes, hand-on software-programming function, this economical-type barcode scanner is the best choice ever.

  • Contact type linear imager bar code scanner.
  • Contact read 80mm bar code at window.
  • Ideal resolution for retail and general commercial applications.
  • Reads most 1D bar code symbologies include GS1 Databar codes.
  • Compatible with most host systems through "all-in-one" universal interface.
  • Folio style and ergonomic design, available for Beige and Black color choice.
  • 1D Codes
  • GS1

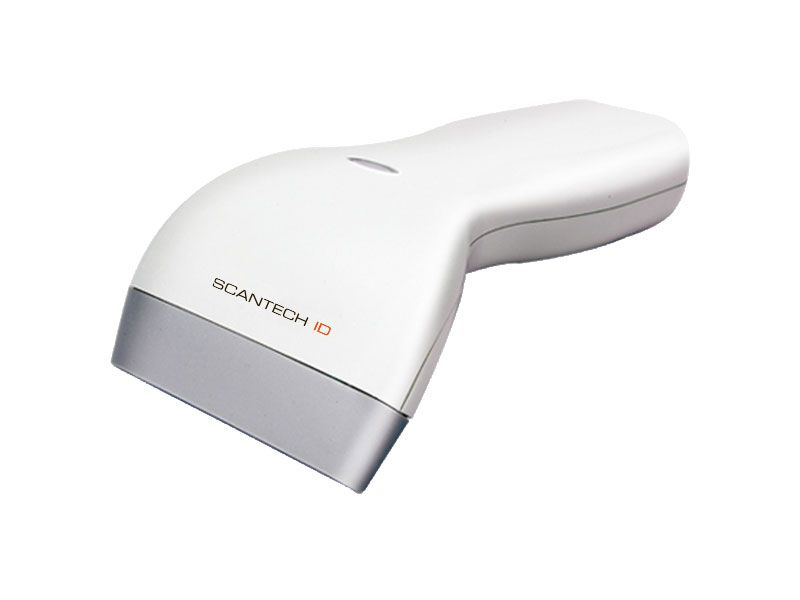

  • SD320

    SD320
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 20,000 Lux Max
- Up to 5,000 Lux Max Up to 20,000 Lux Max Up to 10,000 Lux Max

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Drop Resistance Print Contrast Ratio Width of Field
173.5 x 90 x 56.2mm 632±5nm Red LED Contact to 50mm@20mil/0.5mm, PCS90%, Code39 4mil/0.1mm 120 scans Beeper and LED 1.2m 30% 90mm (80mm at window)
- 166.4 x 78 x 77.8mm 171.3 x 82.8 x 75mm 168 x 65 x 54.9mm - 632±5nm Red LED 632±5nm Red LED 632±5nm Red LED - Contact to 60mm@20mil/0.5mm, PCS90%,Code39 Contact to 80mm@20mil/0.5mm, PCS90%,Code39 Contact to 300mm@20mil/0.5mm, PCS90%, Code39 - 4mil/0.1mm 3mil/0.076mm 4mil/0.1mm - 120 scans 200 scans±10% 100 scans±10% - Beeper Beeper and LED Beeper - 1.2m 1.2m 1.5m - 30% 30% 45% - 80mm (60mm at window) 90mm (80mm at window) 90mm (40mm at window)

Electrical Characteristics

Interface Power
RS232, USB(HID,Virtual COM),KBW DC 5V
- RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW - DC 5V DC 5V DC 5V
Configuration Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • Champtek p/n0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-PS/2(Beige)

    • Cable-CHK-PS/2(Beige)
    • Champtek p/n0114-2150111
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  3. Cable-CHK-PS/2(Black)

    • Cable-CHK-PS/2(Black)
    • Champtek p/n0114-2150121
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  4. Cable-CHK-RS232(Chip, Beige)

    • Cable-CHK-RS232(Chip, Beige)
    • Champtek p/n3114-5801131
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  5. Cable-CHK-RS232(Chip, Black)

    • Cable-CHK-RS232(Chip, Black)
    • Champtek p/n3114-5801141
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  6. Cable-CHK-USB(Beige)

    • Cable-CHK-USB(Beige)
    • Champtek p/n0114-980A131
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Beige color length 1.5m
    • ColorBeige
  7. Cable-CHK-USB(Black)

    • Cable-CHK-USB(Black)
    • Champtek p/n0114-980A231
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Black color length 1.5m
    • ColorBlack
  8. Stand-SG/LG/IG3xx Series(Holder, Beige)

    • Stand-SG/LG/IG3xx Series(Holder, Beige)
    • Champtek p/n0121-CH02011
    • RemarkPlastic Holder for SG3xx, IG3xx,LG3xx series Beige color
    • ColorBeige

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
