Features

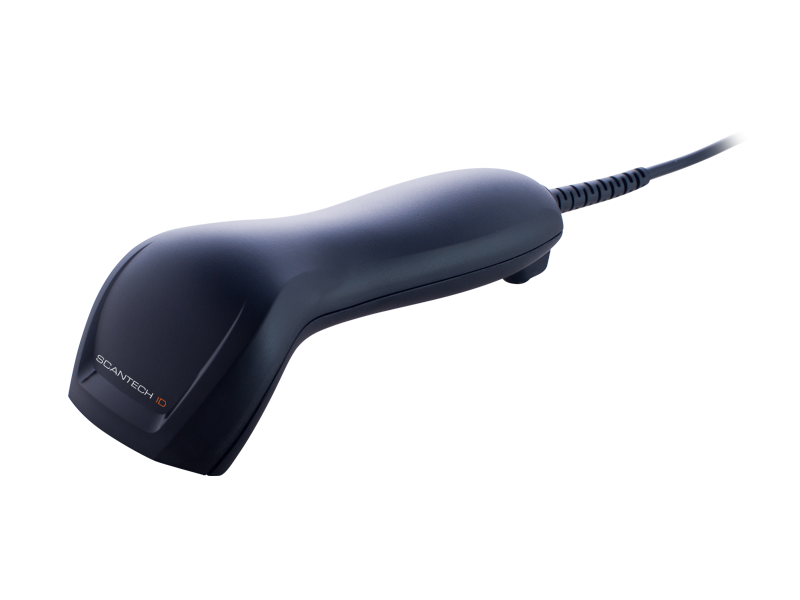

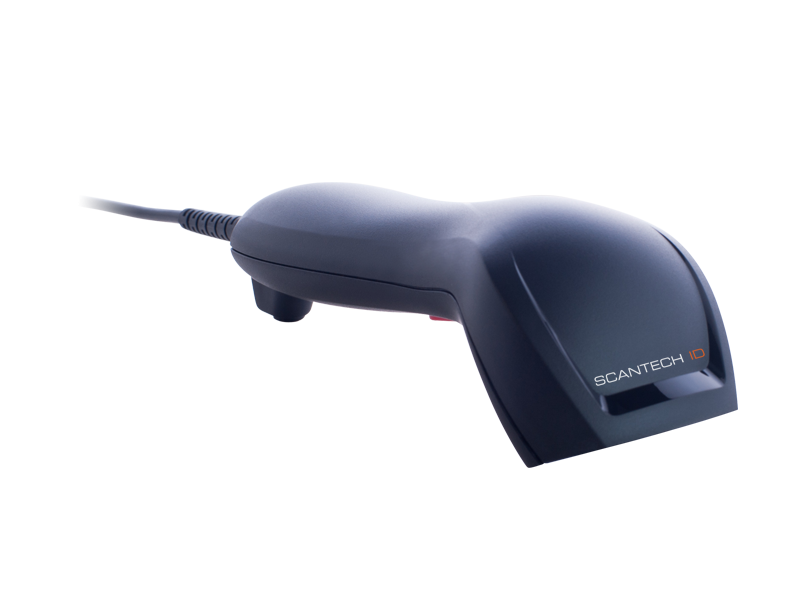

SD380 linear imager barcode scanner brings unmatched performance along with the latest advanced technology to the point-of-sale checkout operations, and it is a reliable bar code reader suitable for a wide range of environments. SD380’s features and its outstanding price-performance ratio make it the best solution for retail and light industrial applications. SD380 provides 'black' or 'warm gray' color as option, emphasizing the curving lines of the new enclosure and supports keyboard wedge, RS232 and USB interface. The powerful built-in decoder reads and discriminates all major 1D bar codes and GS1 DataBar™ symbologies, including damaged or poorly printed codes, reducing processing time and labor costs, while increasing accuracy. Its programming menus provides extensive configuration options. A stand or holder option can be ordered to facilitate hand-free reading option and configured to its automatic sense and wake-up reading can extend its lifespan. SD380 provides customers with the most cost-effective solution in the market and is the best choice for any retail environments.

  • The best price-performance ratio solution in the market for retail and light industrial applications.

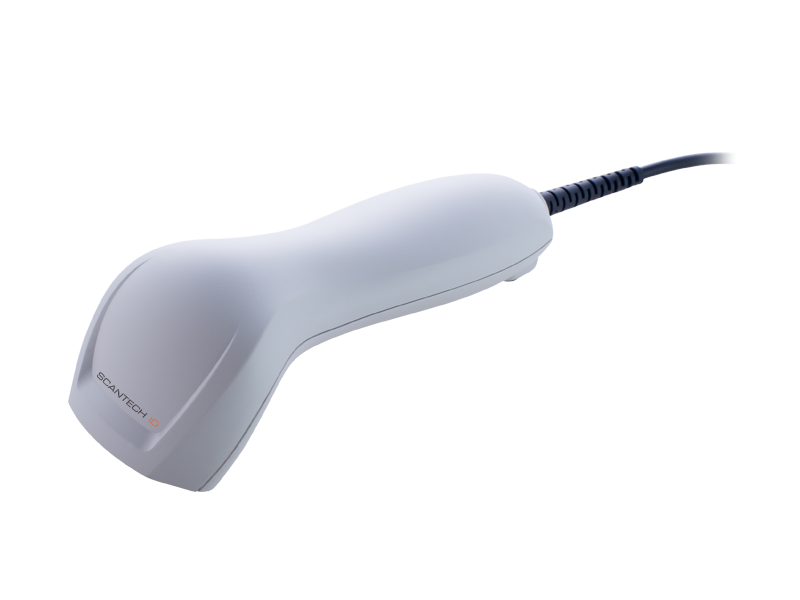

  • Available for Gray and Black color choice.
  • Reading depth from window up to 200mm.
  • Support minimum resolution 4 mil/0.1 mm.
  • Reads most 1D bar code symbologies include GS1 Databar codes.
  • Support multiple Interface options, USB / RS-232 / Keyboard Wedge.
  • A stand or holder option can be ordered to facilitate hand-free reading options.
  • 1D Codes
  • GS1
  • SD380

    SD380
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 10,000 Lux Max
- Up to 5,000 Lux Max Up to 20,000 Lux Max Up to 20,000 Lux Max

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Drop Resistance Print Contrast Ratio Width of Field
168 x 65 x 54.9mm 632±5nm Red LED Contact to 300mm@20mil/0.5mm, PCS90%, Code39 4mil/0.1mm 100 scans±10% Beeper 1.5m 45% 90mm (40mm at window)
- 166.4 x 78 x 77.8mm 173.5 x 90 x 56.2mm 171.3 x 82.8 x 75mm - 632±5nm Red LED 632±5nm Red LED 632±5nm Red LED - Contact to 60mm@20mil/0.5mm, PCS90%,Code39 Contact to 50mm@20mil/0.5mm, PCS90%, Code39 Contact to 80mm@20mil/0.5mm, PCS90%,Code39 - 4mil/0.1mm 4mil/0.1mm 3mil/0.076mm - 120 scans 120 scans 200 scans±10% - Beeper Beeper and LED Beeper and LED - 1.2m 1.2m 1.2m - 30% 30% 30% - 80mm (60mm at window) 90mm (80mm at window) 90mm (80mm at window)

Electrical Characteristics

Interface Power
RS232, USB(HID,Virtual COM),KBW DC 5V
- RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW - DC 5V DC 5V DC 5V
Configuration Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • Champtek p/n0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-PS/2(Beige)

    • Cable-CHK-PS/2(Beige)
    • Champtek p/n0114-2150111
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  3. Cable-CHK-PS/2(Black)

    • Cable-CHK-PS/2(Black)
    • Champtek p/n0114-2150121
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  4. Cable-CHK-RS232(Chip, Beige)

    • Cable-CHK-RS232(Chip, Beige)
    • Champtek p/n3114-5801131
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  5. Cable-CHK-RS232(Chip, Black)

    • Cable-CHK-RS232(Chip, Black)
    • Champtek p/n3114-5801141
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  6. Cable-CHK-USB(Beige)

    • Cable-CHK-USB(Beige)
    • Champtek p/n0114-980A131
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Beige color length 1.5m
    • ColorBeige
  7. Cable-CHK-USB(Black)

    • Cable-CHK-USB(Black)
    • Champtek p/n0114-980A231
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Black color length 1.5m
    • ColorBlack
  8. Stand-SG/LG/IG3xx Series(Holder, Beige)

    • Stand-SG/LG/IG3xx Series(Holder, Beige)
    • Champtek p/n0121-CH02011
    • RemarkPlastic Holder for SG3xx, IG3xx,LG3xx series Beige color
    • ColorBeige

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
